DIY Customized Series

4G Wireless Cellular Wi-Fi Module Camera with Motion Detection Surveillance Hidden Camera DIY Kit

Model: M500

Remote View and Recording Live streaming on Android or iOS smartphone using 4G Cellular (Network) or WiFi By Lookcam

Support Recording file save on to Micro SD Card

Supported Motion Detection

Alerts via on phone app (Lookcam)

90 Degree / Wide Angel View（Approx 120 Degree） / Night Version （Optional）

product details

Specifications

Package Information

Download

Product Introduction

4G Wireless Wi-Fi Module Camera with Motion Detection

New innovative mini camera that works on 4G or as a WiFi Camera.

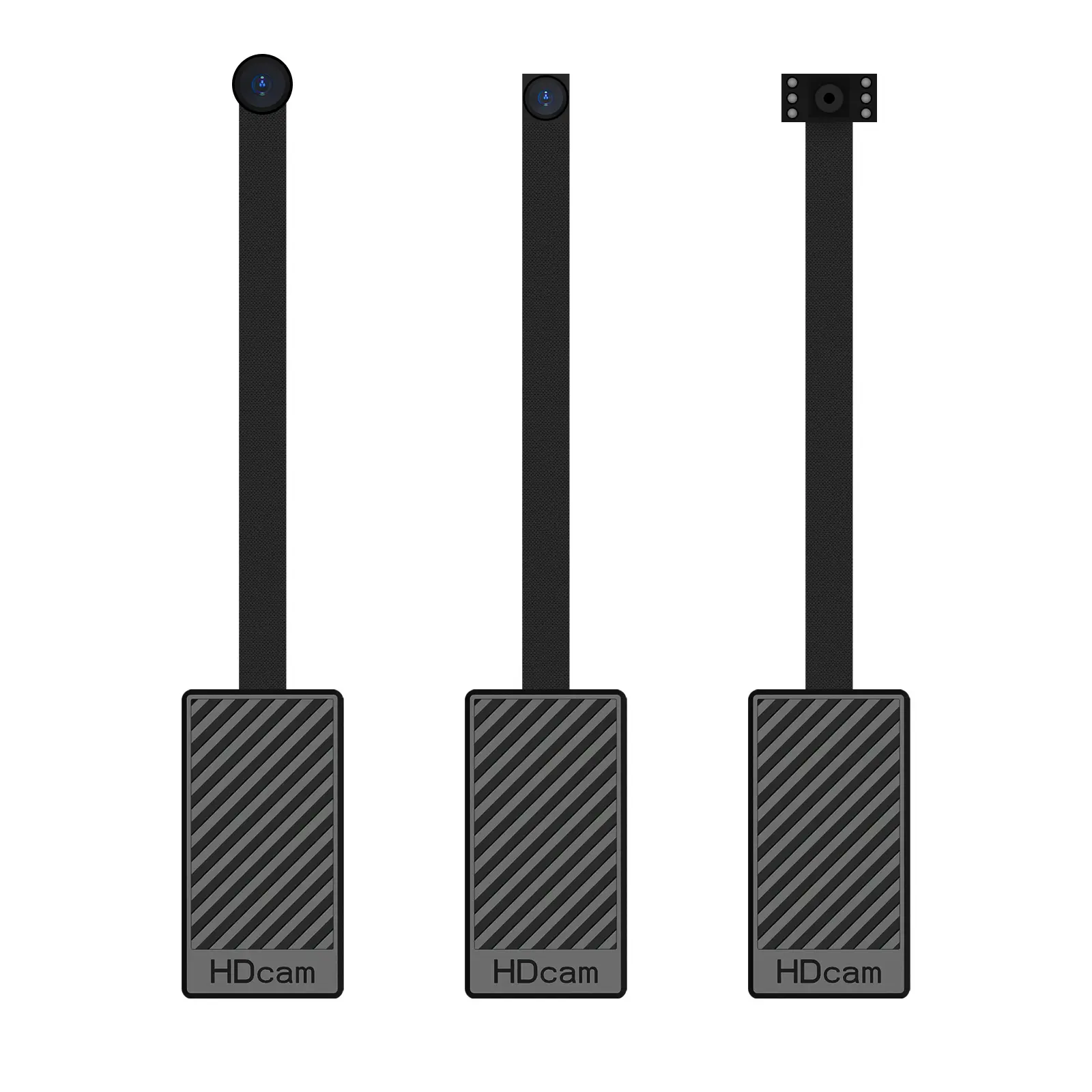

The 4G Wi-Fi Camera Module with 90 Degree / 120 Degree Wide Angel View / Night Vision (Optional) with Motion Detection is a small security camera.

1767063381706

As you can use to watch online images via an app from anywhere in the world! This mini camera in a camera module is an absolute novelty and differs from other wifi cameras in that,

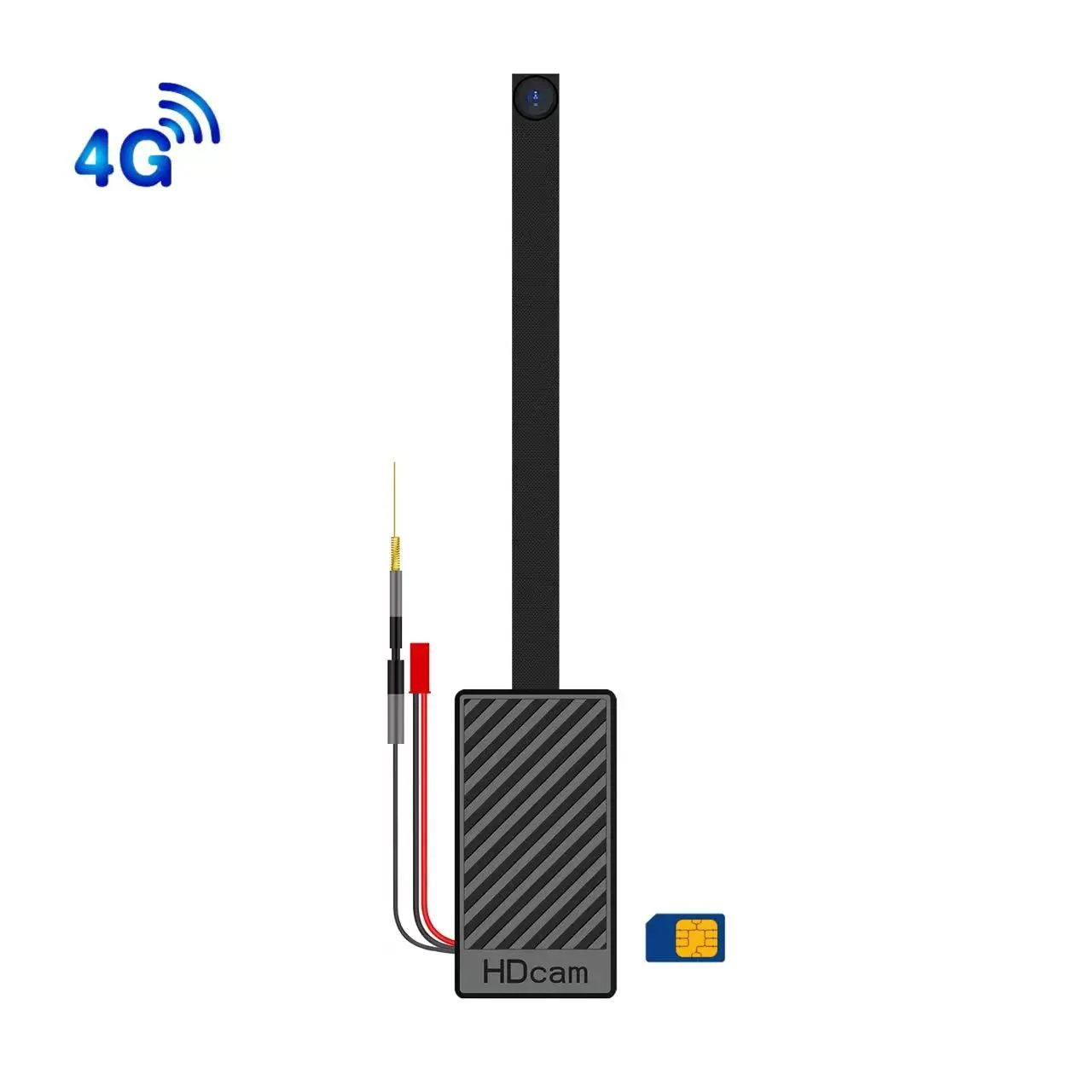

Special you can pair it to your home wifi network and watch the image remotely or, if you don’t have a wifi network, you can insert a 4G SIM card with internet into the camera, which will guarantee you can watch the online image remotely via an app on your mobile phone.

The app is free to download for Android and iPhone etc Smart phones(Lookcam). The camera records in Full HD quality, and records video with audio to a memory card up to a maximum support of 128GB (not included).

The camera module with a rechargeable(External) 2500 mAh battery that lasts for 8-10 hours when full charged. For non-stop operation, you can leave the camera module under power, so you can watch the online video 24/7.

2-1

3-1

4-1

Specifications

Package Includes

1*USB Camera,

1*User Manual,

1* Chains and Clip

File Download

FCC Certification.pdf
Download

Bullet Points	4K Ultra HD Resolution with Audio Dual Band 4G LTE Network and WiFi 90° Degree / 120° Wide Angel View / Night Version (Optional) Glass Lens Up 8-10 hour Battery (About 2500mAh) Records Audio & Video Boots-up And Records Automatically Stores Over 8 Hours on 128 GB (Not Include the Memory Card) USB Type C Tiny Size and Micro Lens Can be Placed in Anything Invisible Extend Camera Lens︱Max Up to 15-20cm Two-Way Audio
Sensor	1/3" CMOS
Lens	20cm Extend Camera Lens
Lens Angle	90º / 120º / Night Version (3 Types Optioanl)
Interface	USB, Wireless Smartphone App (LookCam)
Light Sensitivity	1.0 LUX
Video Quality	Ultra High Definition 4K/1080P
Video Format	H265
Video Playback	Cloud storage, local Micro SD card, and mobile phone memory
Recording Content	Video & Audio

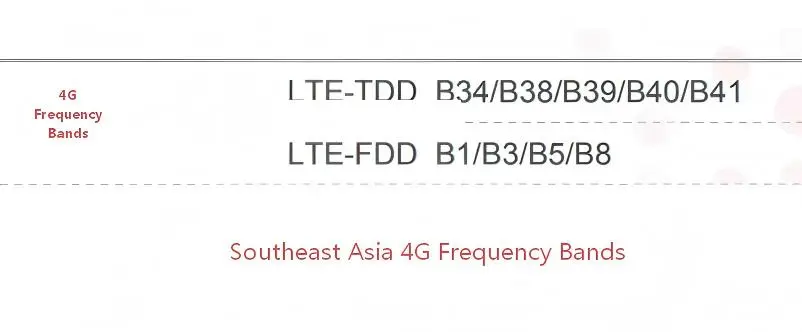

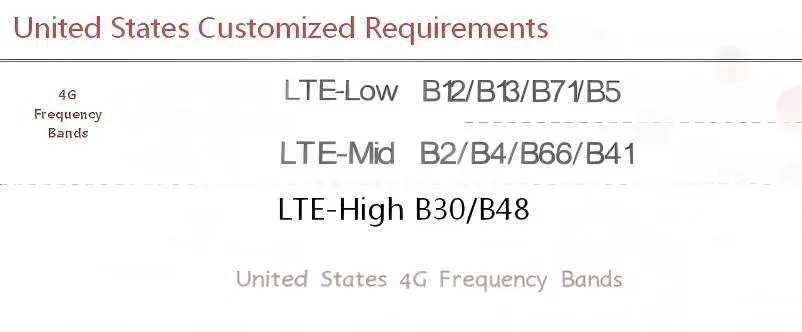

Wireless Standard	4G - TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD / IEEE 802.11b/g/n
Wireless Security	WEP WPA WPA2 Encryption
WiFi Function	Stop, Start, Record, Save, Share
WiFi Distance	Up to 100 Feet
Audio	2-Way Audio Mic / Speaker
Max Memory Size	128 GB
Memory Card	Micro SD
Operating Temp. Range	-14° F - 140° F
Shutter Type	Electronic
Night Vision	90º / 120º / Night Version (3 Types Optioanl)
Battery Size	2500mAH
Battery Life	8-10 Hours
Motion Detection	Supported
Operating System	Windows, Max OS x, Smartphone (Apple/Android)
Power Source	Battery, Plug-In Type-C
Functions	Motion Activated, Remote View and Live Streaming
Purpose	Home, Nanny Camera, Office, Outdoor, Wearable
